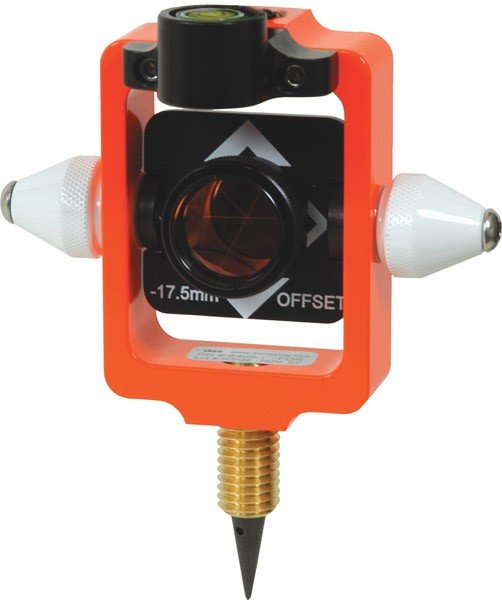

Seco 6405-12-FOR Nodal Point Stakeout Mini Prism With Site Cones
$340.00 + GST
Nodal Point Stakeout Mini 25 mm Prism with Site Cones – Fluroescent Orange
Overview for Seco 6405-12-FOR Nodal Point Stakeout Mini Prism With Site Cones
The Seco 6405-12-FOR Nodal Point Stakeout Mini Prism With Site Cones features a nodal 0/-17.5 millimetre offset, which is usually associated with short distance measurements. White site cones are on both sides to improve vertical angle pointing or help to centre cross-hairs from survey instruments. In addition, these site cones work as lock knobs for the tilting-axis. A 40-minute levelling vial can be found in the front and at the top of this mini prism and it is adjusted easily.
With a 25 mm diameter, the Seco Nodal Point Stakeout Mini Prism With Site Cones maximises survey professionals’ vision in all lighting conditions. It comes in a Fluorescent Orange colour, has a 5/8 x 11-inch thread on the top and bottom, and comes with a carrying bag.
- Features ‘site cones’ that improve vertical angle pointing — the site cones double as tilting-axis lock knobs
- The adjustable 40-min vial is mounted on the front side and is easy to see and simple to adjust
- 17.5 Nodal Offset
- Includes carrying case
- Flo Orange
- Weighs 0.30 lb (0.14 kg)
