SKU: I-SP-LL300S Category:

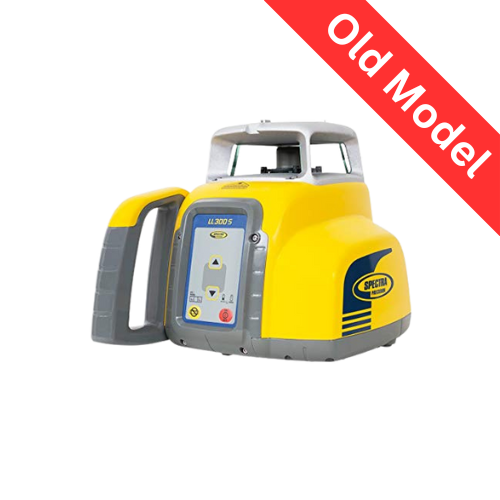

LL300S Laser Level From Spectra Precision

$1,650.00 + GST

The Spectra Precision LL300S Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision LL300S to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose. The LL300S can withstand drops of up to 3 feet (1 meter) onto concrete and tripod tip-over up to 5 feet (1.5 meters), resulting in reduced downtime and lower repair costs.



Download Brochure Here: Spectra_LL300S_Rotary_Laser_Level_Rotating_Laser_Laser_Tools

Available on backorder

LL300S Laser Level Overview

The Spectra Precision LL300S Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision LL300S to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose. The LL300S can withstand drops of up to 3 feet (1 meter) onto concrete and tripod tip-over up to 5 feet (1.5 meters), resulting in reduced downtime and lower repair costs.

The LL300S is easy to use: turn it on, it levels, it spins. With the addition of the arrow buttons on the transmitter, grade matching can be performed whilst the other axis remains self-levelled. The new, optional, RC402N long range (330 ft (100 m)) radio remote control makes slope matching a single person operation.



LL300S Laser level Features & Benefits:

  • Increases productivity with fast setups, fewer mechanical parts, and automatic self-levelling
  • Maintains performance even in rainy, dusty and other harsh job site and weather conditions – IP66 environmental rating
  • Durable design reduces downtime due to drops and tripod tip-overs
  • Minimises power costs, increases reliability with choice of rechargeable or alkaline batteries
  • Increases flexibility with optional long-range radio remote control
  • Comes with choice of HL450 or HL760 receivers so you can choose the best option to suit your application
  • Kits available with system case which contain laser, receiver, tripod and grade rod



APPLICATION

  • General elevation control
  • Checking and setting elevations for small to medium job sites
  • Leveling forms and footers
  • Estimating cut and fills * Excavations
  • Basic slopes for driveways and ramps



LL300S Kit Includes:

  • LL300S Laser level
  • HL450 receiver with C45 clamp
  • Alkaline batteries
  • Carry Case
  • Manuals



LL300S Laser Level Specifications

Laser Source 650 nm, Class 2, <3,4mW
Laser Accuracy ±1/16 in at 100 ft (±1.5 mm at 30 m)
Operating Range 2,600 ft (800 m) diameter
Operating Range (RC402N) 330 ft (100 m)
Self-levelling Range ±5 degrees
Compensation Method Electronic self-levelling
Drop Height on Concrete performance 3 ft (1 m)
Single Axis Manual Slope Mode Yes (w/self-levelling mode on the second axis)
Out-of-level Warning Rotor stops, red out-of-level HI/MAN-LED flashes
Power source 4 x D-cell NiMH or alkaline batteries
Battery life Rechargeable – 47 hours, Alkaline – 60 hours
Battery Status LED Flashing red LED
Rotation speed 600 RPM
Tripod Mount (Horizontal and Vertical) 5/8” x 11
Operating temperature -4 °F to 122 °F (-20 °C to 50 °C)
Storage temperature -4 °F to 158 °F (-20 °C to 70 °C)
Water and Dust Protection Yes, IP66
Size 10.7L × 7.7W × 7.9H in (27.2L × 19.7W × 20.1H cm)
Weight 5.9 lbs (2,7 kg)
Warranty 5 Years
