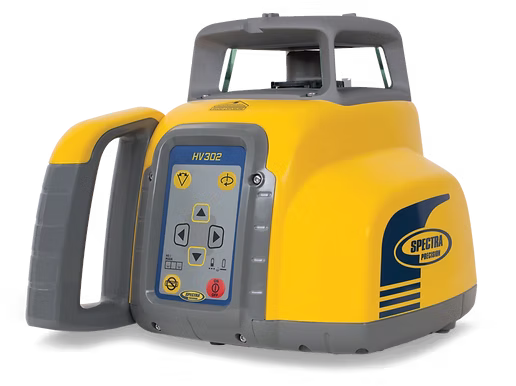

Overview for the Spectra Precision HV302 Laser Level

Ideal for both indoor and outdoor projects, the Spectra Precision HV302 Laser level is an automatic, self-levelling laser used in various horizontal, vertical and plumb applications. It is ideally used in jobs where a layout is performed and an accurate and level reference is needed. Featuring a 90-degree plumb reference, this Spectra rotary laser has an accuracy of ±1/16 inch per 100 feet. This rotary laser also has PlaneLok that automatically locks onto an existing horizontal elevation or provides quick automatic vertical alignment, greatly reducing error due to improper calibration or weather.

With a split beam, the Spectra HV302 enables plumb point transfer within ±5 degrees horizontal and vertical self-levelling. It features simple keypads with arrow buttons for easy grade matching which connects different elevations and establishes a sloped reference over an unknown ground. This self-levelling laser also has an optional Spectra RC402N remote control that gives construction professional access to the laser functions up to 330 feet away.

With an IP66 rating, the HV302 enables construction professionals to operate the laser level in adverse environmental conditions, even in heavy rain. This rotary laser has a 5/8 x 11 thread that allows contractors to mount the laser horizontally or vertically to a tripod. It includes alkaline batteries that work up to 60 hours of continuous use and a 5-year manufacturer’s warranty.

Spectra HV302 Laser Level Kit Includes:

The Spectra HV302 Self-Levelling Laser has a complete kit for all your requirements.

• HV302-B-K: With HL760 Receiver, RC402N Remote and Alkaline Batteries

	No Cost 5-Year Warranty offers no repair charge for parts and labour of the laser.
	Shock Proof ensures this construction laser withstands a three feet drop onto concrete.
	Optional Radio Remote control transforms slope matching into a single person operation. It is easier to use because it does not have to be aimed at the laser for it to work.
	Fingerprint function filters out other lasers that strike the receiver and only accepts the laser that it is paired with.
	90 Degree Layout provides all the references required for a wide variety of interior applications including wall layout and installation, acoustic ceiling installation, point transfer, and tile layout.
	Grade Match enables contractors to measure an unknown grade value automatically between two elevation points.
	Dual Axis PlaneLok keeps the laser beam fixed to a receiver in a set position, making it accurate and error free.
	A hard-shelled, portable System Case is available to house the laser, receiver, clamp, tripod, and grade rod.

HV302 Laser Level Product Highlights

Easy To Use

Whether your job is indoors or outdoors, the automatic, self-levelling Spectra Precision® HV302 Horizontal/Vertical Laser is the most rugged laser available, tough enough to handle a wide variety of horizontal, vertical and plumb applications. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility beam of the HV302 delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

The rugged HV302 laser can withstand drops of up to one meter (three feet) onto concrete and tripod tip-overs up to 1.5 meters (five feet). This strength, combined with full weatherproofing and dust-proofing, reduces downtime and lowers repair costs over the life of the product.

Combine the HV302 with the advanced HL760 Digital Readout (DRO) receiver to provide Grade Match, PlaneLok and Fingerprint function.
Grade Match which connects different elevations and establishes a sloped reference over unknown ground. As a consequence it eliminates time consuming manual slope adjustments.
PlaneLok automatically locks on to an existing horizontal elevation or provides quick automatic-vertical alignment which eliminates all drift or possibility of error due to improper calibration or weather.
The unique “Fingerprint” function only accepts the beam from the laser it is paired with.

Features & Benefits

• Increases productivity with fast setups, fewer mechanical parts, and automatic self-levelling
• Line scan and beam plunge feature for easy dry walls
• Rotor vial for easy and accurate vertical plumb set-up
• Preset adjustable rotation speed and scan line sizes to fulfill all interior application needs
• Maintains performance even in rainy, dusty and other harsh job site and weather conditions – IP66 environmental rating
• Minimises power costs, increases reliability with choice of rechargeable or alkaline batteries
• Increases flexibility with optional long range radio remote control
• Comes with choice of HR150, HL450 or HL760 receivers so you can choose the best option to suit your application
• Multiple kits available depending upon your application

Key Features

• Automatic horizontal and vertical self-levelling
• Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
•  Working range of 800 m (2,600 ft) diameter
• High-visibility beam – easily visible even in
  brightly lit conditions
• Split beam – enables plumb point transfer
  and 90-degree layout
• Height of Instrument Alert – unit stops rotating
  when jarred to avoid erroneous readings
• Long range RC402N Radio remote control
• Radio communication between the HL760
  DRO receiver and the laser provides automatic
  Grade Matching and PlaneLok
• “Fingerprint” function of the HL760 DRO
  receiver only accepts the beam from the laser
  it is paired with
• Extremely durable and portable
• 5 Year warranty
