Bear 3299F Pipe Inspection System
Bear 3299F Pipe Inspection System comes with a 38mm Camera Head with 60-120m cable options, Self-Levelling Camera and On-Screen Distance Counter

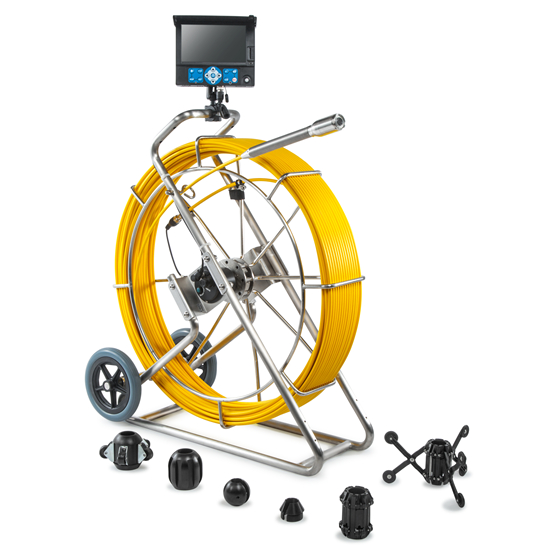

This is a Drain/Pipe Inspection Camera that comes with self-levelling feature 38mm camera head, a removable 7inch LCD monitor with DVR, a 60-120m fibreglass push cable reel, all parts (including camera head, monitor, cable etc) are mounted on a robust stainless steel wheel.
This system is widely used in inspections of Sewer, central air conditioning, chimney, plumbing, building, cable pipe and pipes ventilation systems.
Bear 3299F Pipe Inspection System Key Features
- – 1/3″ Sony CCD camera, 120°wide vision angle, 752H * 582V pixels
- – Camera Size 38mm × 81mm(main body)
- – Two roller skids, mini one at Diameter 72mm, another universal skid at Diameter 115mm – 250mm
- – Sapphire glass lens cover, 12 white LEDs
- – Diameter of camera: 38mm, Focus Distance 12cm (approx)
- – Water proof level, 20m underwater (camera fix on cable)
- – Push cable Diameter 9mm
- – 7” LCD colour monitor
- – SD Card slot to store still pictures or videos
- – One push record button
- – LED brightness control buttons
- – Video image rotate button
- – With microphone for audio recording
- – Built-in rechargeable battery lasts up to 5 hours
- – On-Screen date and time
- – With self-levelling feature
- – On-screen meter/ft. distance display
- – 60, 80M, 100M or 120m fibreglass push rod
- – Built-in 512hz sonde (optional)
- – With universal installation brackets
Optional feature:
- – Camera head with built-in 512Hz sonde
- – Optional camera skids:
- Caster Skid: POM 134mm x 83.9mm 0.30mm Wheel
- POM Skid: POM 78mm x 83.9mm
- Ball Support:POM S 60mm x 53.5mm
- Lock Sleeve:POM 54.6mm x 38mm
- – Keyboard for text input
- – Optional cable length: 60M, 80M,100M,120M
Bear 3299F Pipe Inspection System Applications:
The Bear 3299F Pipe Inspection System is a robust and dependable pipe inspection camera which can be used for a variety of applications such as, Pipeline, Drain & sewer Inspection. Chimney Inspection, Machinery & Building Cavity Inspection and for plumbing maintenance jobs.
What’s included?
- – 1 x 38mm Camera head
- – 1 x 60-120m push cable
- – 1 x professional 7″ monitor with DVR
- – 1 x 72 Roller Skid (for pipe diameter 4″-5″)
- – 1 x 120 universal Skid (for pipe diameter 5 “- 12”)
- – 1 x battery pack
- – 1 x remote control
- – 1 x screw driver
- – 1 x power adaptor
- – 1 x car charger
- – 1 x universal installation brackets
- – 1 x U-Shape wheel extension handle
Specifications:
Camera Head
- Camera Size: 38mm × 81mm(main body)
- Camera Total Length: 318mm
- Sensor: 1/3″ Sony CCD, 480 TV-Line
- Pixel: 752H * 582V
- View Angle: 120°
- Transmitter: 512hz built-in(selectable)
- Self levelling: Built-in
- Focus Distance: 12cm (approx)
- Depth-of-Field: 120cm(approx)
- Front Lens: Sapphire glass
- Water-Proof: 20m Under Water(Camera fix on Cable)
- Shell Material: #304 stainless steel
- Lighting: Built-in 12×LED(White)
- Operating Temperature: -10~50℃/+14~+122℉
- Storage Temperature: -20~60℃/+4~+140℉
Cable Wheel
- 60m, 80M, 100M or 120M fibreglass push rod cable with on-screen distance counter
- Diameter of push cable: 9mm
LCD Monitor
- Screen: 7-inch 16:9 Super bright HD color LCD screen
- Resolution: 800 x 480 RGB
- Mirror and Flip: support image mirror, and flip
- Video Resolution: 720*576 25fps Max.
- Video Encoding: H.264
- Photograph: 720*480/720*576
- Audio Recording: local sound record
- Output: TV and Audio output
- External memory: support SD memory card up to 32GB
- Data output: USB 2.0 to PC
- LED Driver: Built-in dimmer
- Play back: Video,Photo and Audio
- On-screen date and time
- On-screen meter/ft. distance display
- Battery Capacity: 7.4V 4400mAh Li-ion Battery
- Power Supply: DC 12V input
- Life/Charge time: 5/8 hours
- Language: English, German, French, Spanish, Italian, Chinese, Japanese, Russian, Portuguese
