Bear 360 Degree Mini Prism

$430.00 + GST

SKU: A-B-360MINI Category:

Both Leica style and 5/8 x 11 adaptors included Range 650m plus Copper coated prism Prism offset +5mm Painted sighting pole (screw in) Carry bag Lightweight at only 100g Height 50mm Diameter 40mm

17 in stock

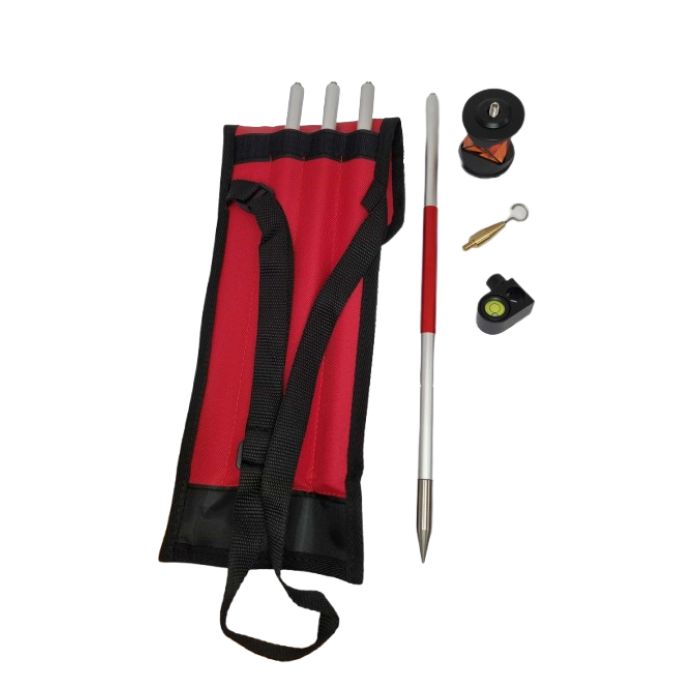

Bear 360 Degree mini prism kit with Leica 5/8″ Adaptor with screw-in sight pole and carry bag.

Bear 360° Mini Prism
Suitable for short range ATR applications. Due to its small size, the Bear 360° Mini Prism provides the greatest pointing accuracy of 1.5mm. The reflector can be mounted on all poles with stub fitting. ATR range of 350m (1150ft).

Light-weight, passive reflectors for use with robotic Total Stations.
For efficient operation without the need for directing the reflector toward the instrument, a 360° prism is required. This type of reflector consists of six corner-cube prisms joined together. The arrangement allows the measuring beam to reflect directly back to its source from any position on the prism set. The even distribution of the prisms provides similar offset and accuracy readings from any side.

The Bear 360 Degree Mini Prism Kit comes included with the below:

  • Both Leica style and 5/8 x 11 adaptors included
  • Range 650m plus
  • Copper coated prism
  • Prism offset + 5mm
  • Painted sighting pole (screw in)
  • Carry bag
  • Lightweight at only 100g
  • Height 50mm
  • Diameter 40mm

Both Leica style and 5/8 x 11 adaptors included Range 650m plus Copper coated prism Prism offset +5mm Painted sighting pole (screw in) Carry bag Lightweight at only 100g Height 50mm Diameter 40mm
