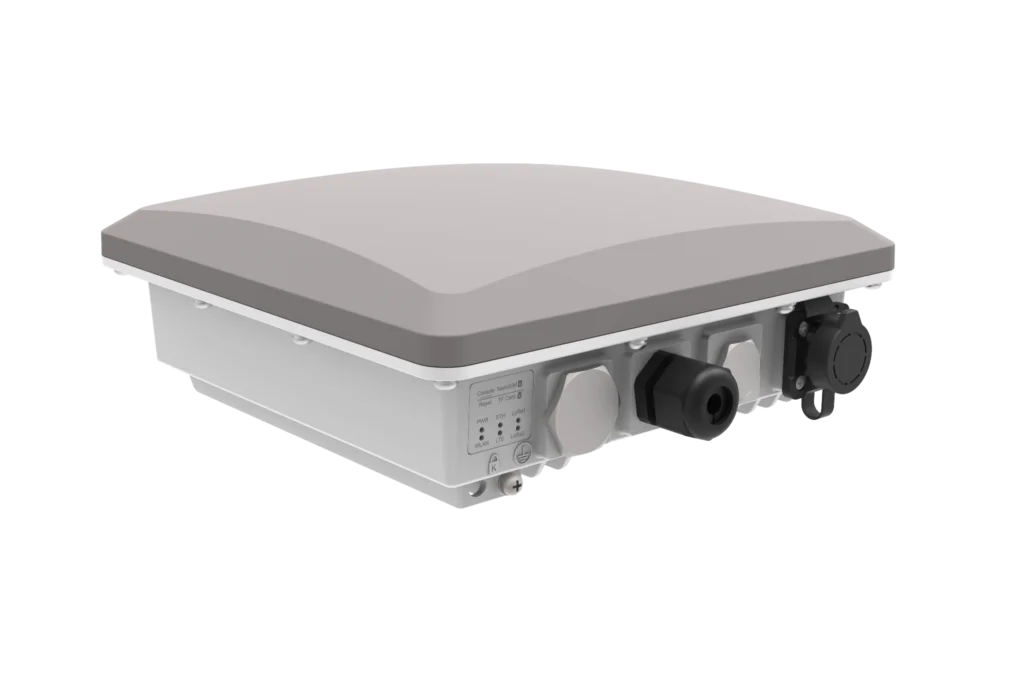

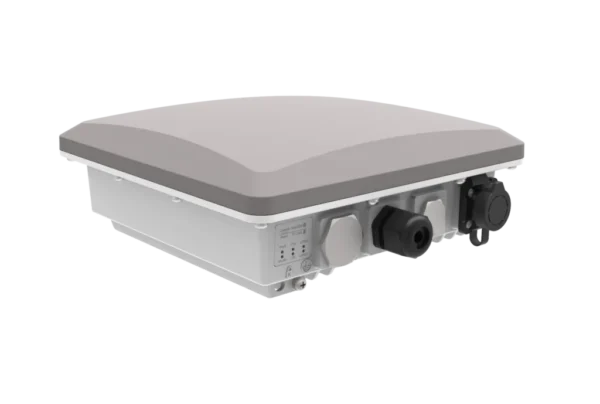

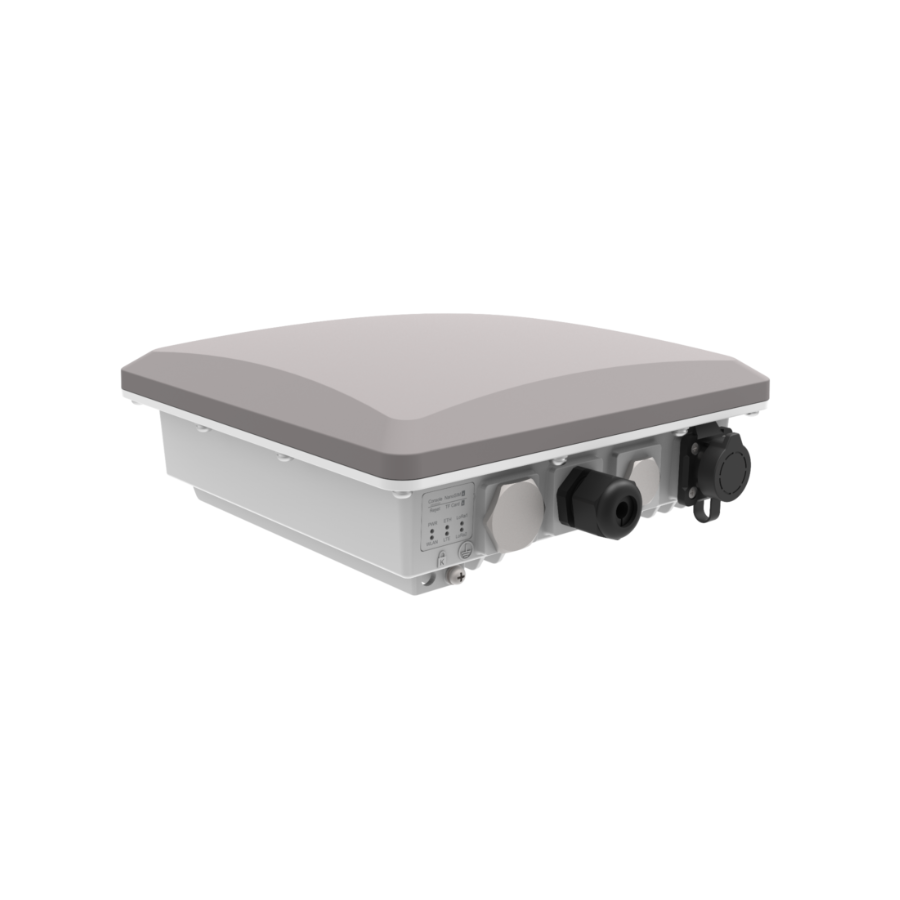

The Gateway device is a data reception and transmission
unit with which, thanks to the LoRaWAN wide-range communication
protocol, it is possible to manage and communicate
with dozens of devices and sensors at the same
time.
This device first of all receives the information transmitted
by the multiple sensors installed, thanks to the Lo-
RaWAN communication protocol, then, using Cellular connectivity,
sends this data to the Move SolutionsTM online
servers. The device is Out- door IP67.
Depending on the type of structure monitored and on obstacles
that may disturb the radio transmission in the monitoring
area, it may be necessary to mount one Gateway
for every 20 devices. Furthermore, if two Gateways are to
be used, greater security and efficiency in receiving data
will be guaranteed. By using two SIMs from different operators,
a redundancy of resources will be more available
in the event of a temporary lack of network by one of the
two operators.

QUICK GUIDE TO USE
Before being able to receive and transmit data, the Gateway device must first of all be configured, powered and
installed correctly.
The steps to be taken for correct operation of the Gateway device are:
1. SIM CONFIGURATION:
• Purchase a Standard SIM Card with APN “Internet”, and with a minimum of 5 Giga-bytes of monthly Internet
browsing.
• Remove the unlock PIN code when accessing the SIM via the settings of any mobile device.
• Insert the SIM into the Gateway.
2. SCREWING THE ANTENNAS:
• Follow the layout of the labels placed on the device to screw the LTE and LoRa antennas correctly.
3. INSTALLATION ON THE STRUCTURE:
• Agree with the supplier company on the correct positioning of the Gateway device on the structure with
respect to the monitoring area.
• The Gateway must be in line of sight with each specific sensor.
• Firmly install the Gateway on a wall or pole using the special plate, screws/wall plugs or metal clamps
supplied.
4. SUPPLY:
• Connect the Gateway to the electricity supply only after all sensors have been installed.
• Connect the Gateway to the electricity by means of the supplied special converter – from 220V AC to
12/24V – or by means of a solar panel (available on request).
After having satisfied these configuration, installation and powering steps, the Gateway device will be able to receive
and forward data continuously to the Move Solutions™ online servers.
Verify, through the Web Platform, the correct functioning of the monitoring system just installed. From the moment
the Gateway is powered up, and therefore from the actual start-up and activation moment, a maximum
waiting of about an hour is required before it is possible to correctly view all the sensors online.
