The iDig CONNECT 3D System is a complete machine control and excavator guidance solution designed for accurate 3D positioning, grading, and excavation work. Built for contractors who need greater precision across complex sites, this system combines machine-mounted sensors, GNSS positioning, and iPoint software to support efficient, accurate earthmoving workflows.
With a transferable control box, LED guidance display, Bluetooth sensors, automatic pitch and roll compensation, and the included Spotman GNSS Rover Kit, the iDig CONNECT 3D System provides a powerful setup for modern machine guidance.

Key Benefits
• Complete 3D machine control system for excavator guidance
• Includes Spotman GNSS Rover Kit for positioning and layout
• Transferable control box for use across compatible machines

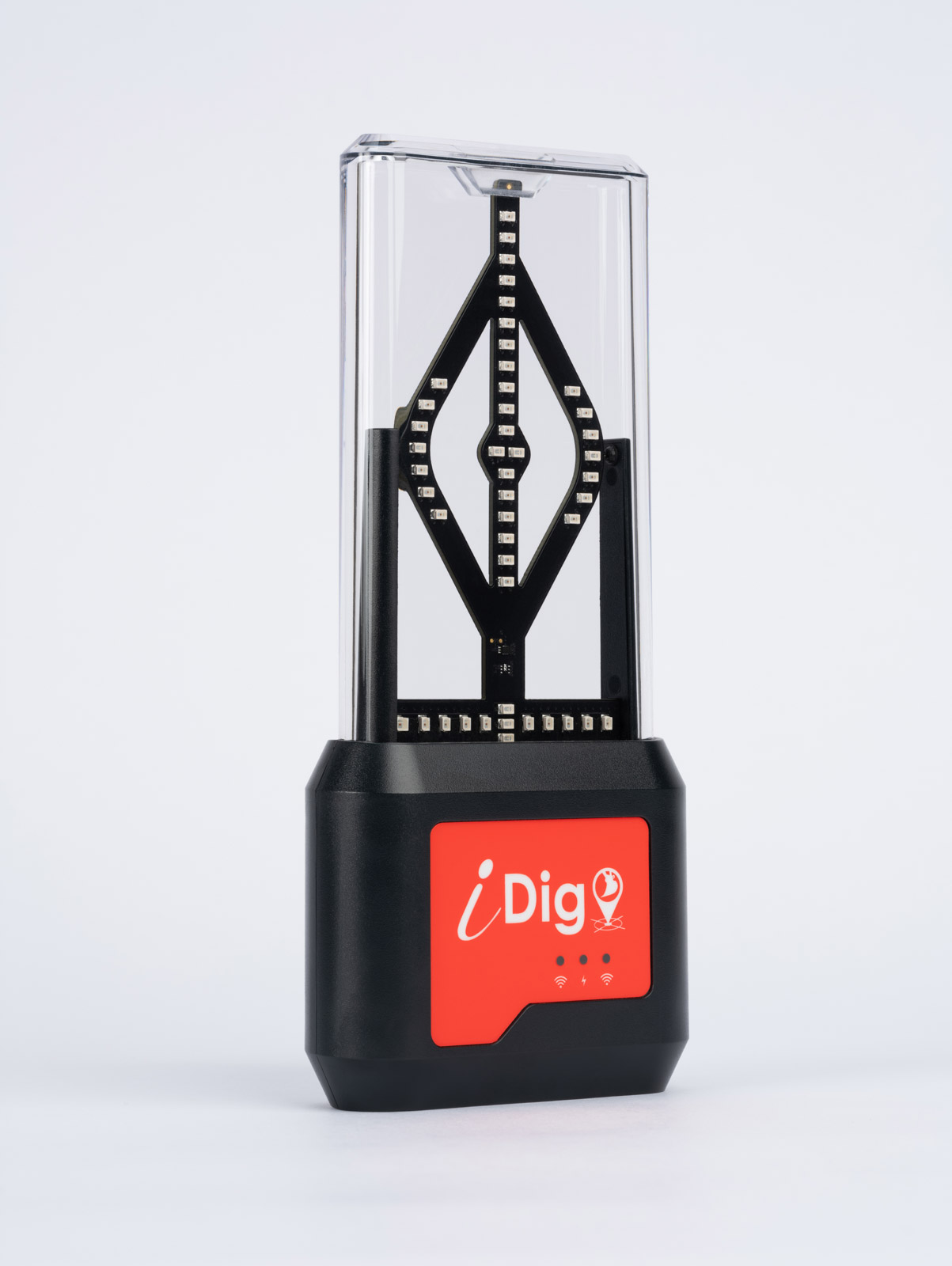

• LED bar graph display for clear in-cab guidance
• Automatic pitch and roll compensation via chassis sensor
• Bluetooth combo laser sensor supports 2D mode when 3D is unavailable
• Includes 3D-activated license software and calibration kit

Designed for Accurate 3D Machine Guidance

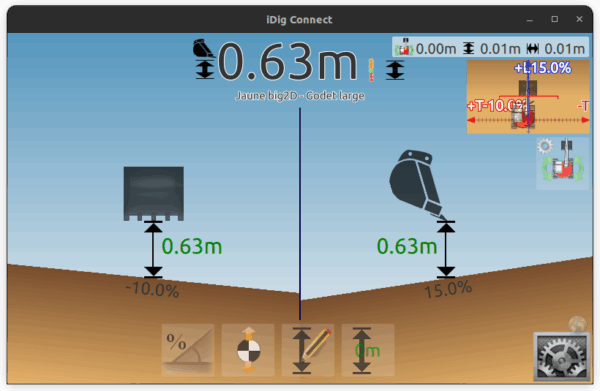

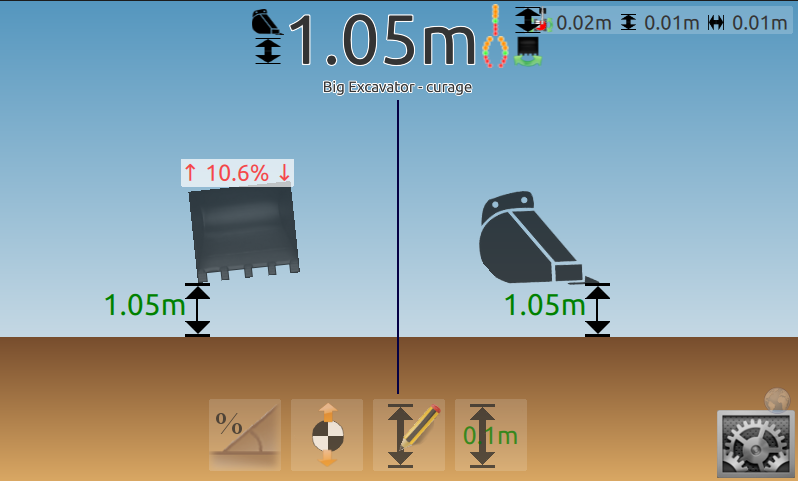

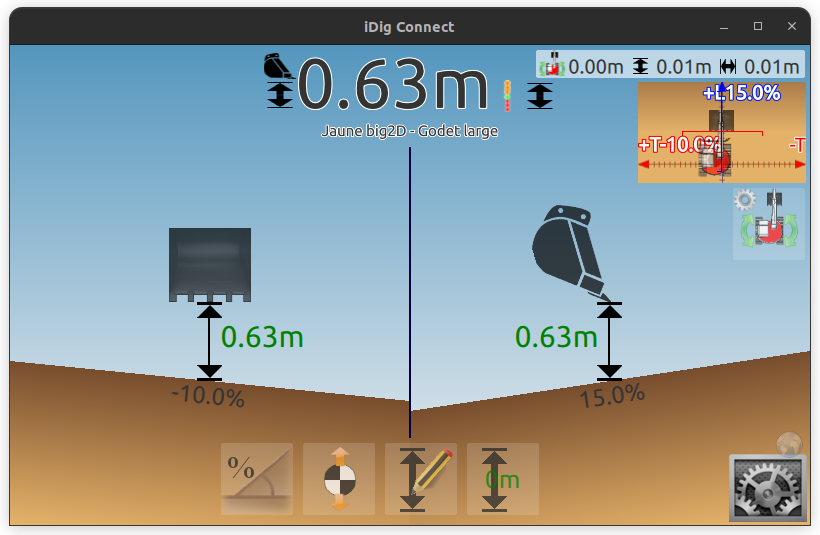

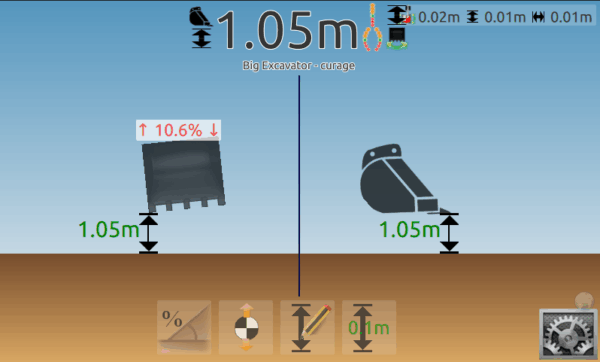

The iDig CONNECT 3D System helps operators work from digital positioning data, improving accuracy across excavation, grading, and earthmoving tasks. By combining GNSS rover capability with machine-mounted sensor feedback, the system supports precise depth, slope, and position control directly from the cab.

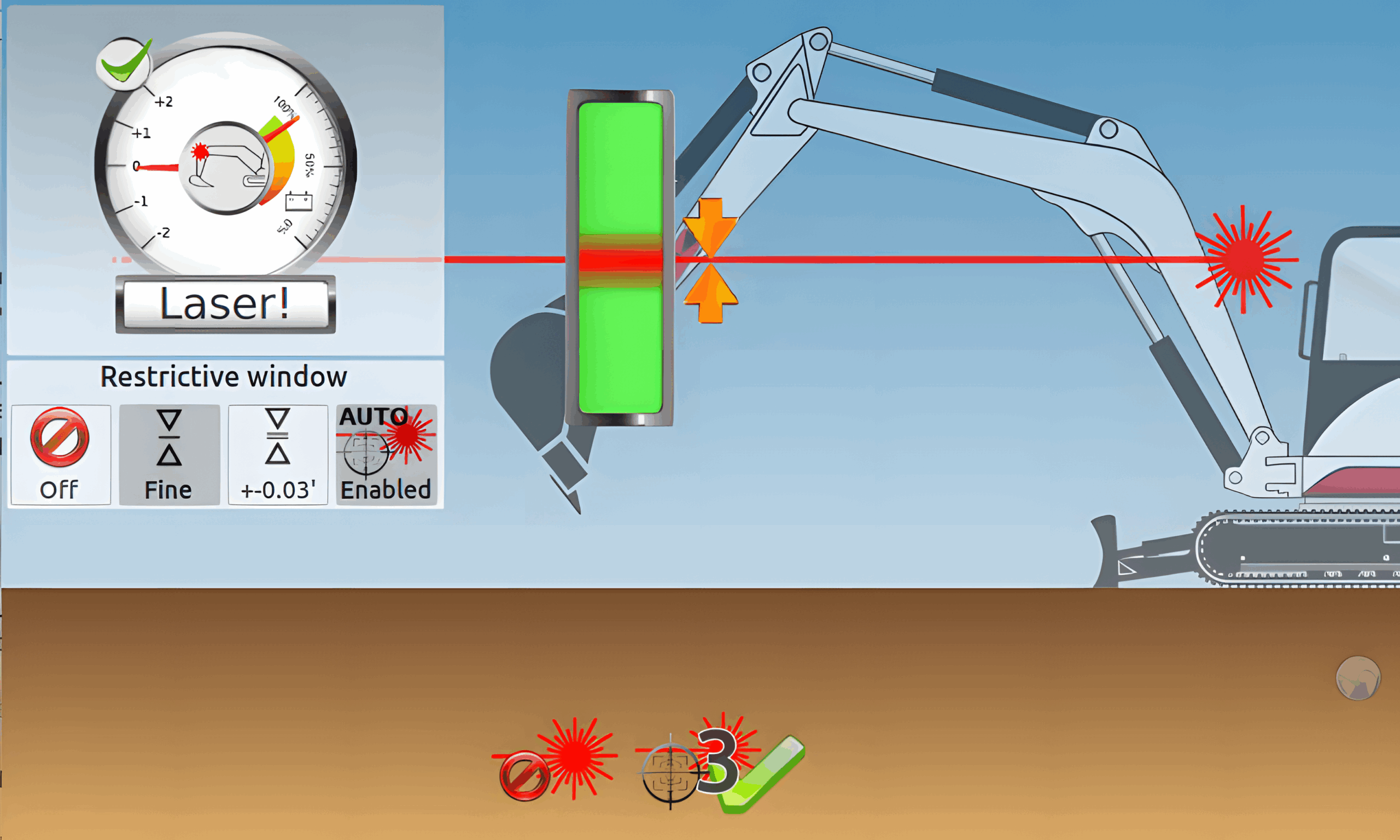

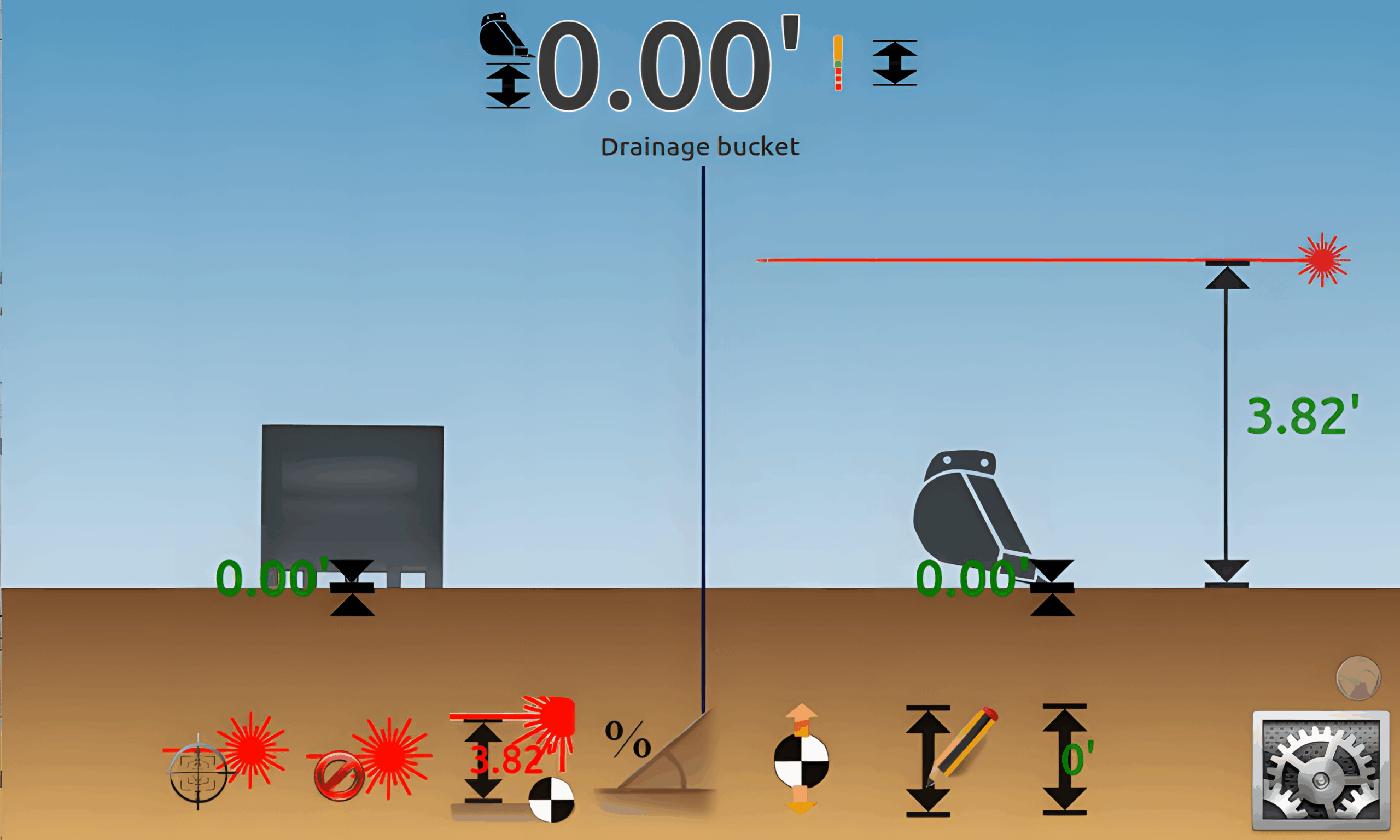

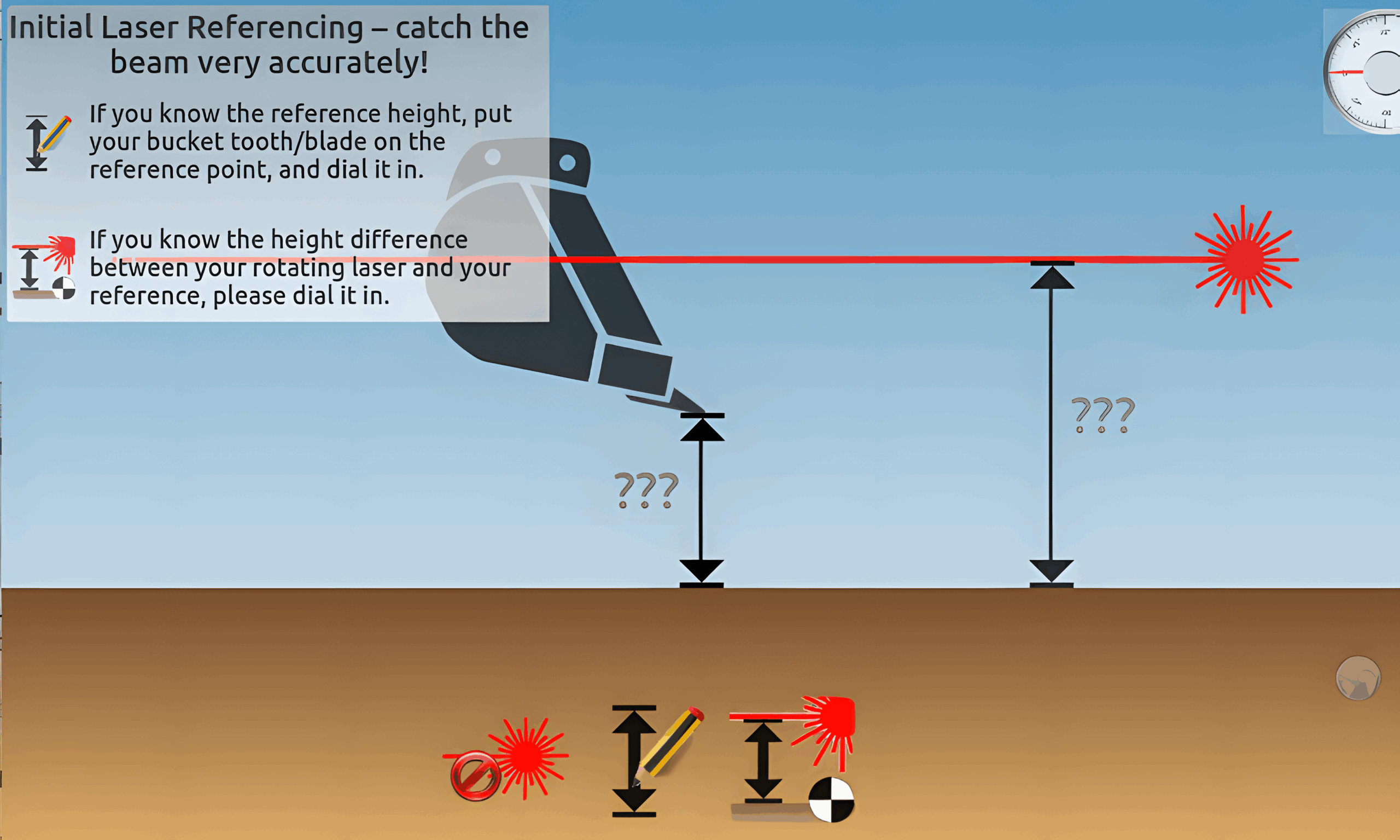

The included Bluetooth combo laser sensor also provides flexibility by enabling 2D mode when 3D guidance is not available.

Ideal Applications
• Civil construction and earthworks
• Excavation and grading
• Trenching and drainage
• Roadworks and site preparation
• Digital layout and machine guidance
• Projects requiring 2D and 3D flexibility

What’s Included
• 1 × Control Box with Cradle
• 1 × LED Bar Graph with Cradle
• 2 × Mini-Bluetooth Sensors with Mounting Plates
• 1 × Bluetooth Combo Laser Sensor with Mounting Plate
• 1 × Chassis Sensor for Pitch and Roll Compensation
• 1 × GNSS Spotman Rover Kit
• 1 × iPoint Software
• 1 × 3D-Activated Licence Software
• 1 × Calibration Kit

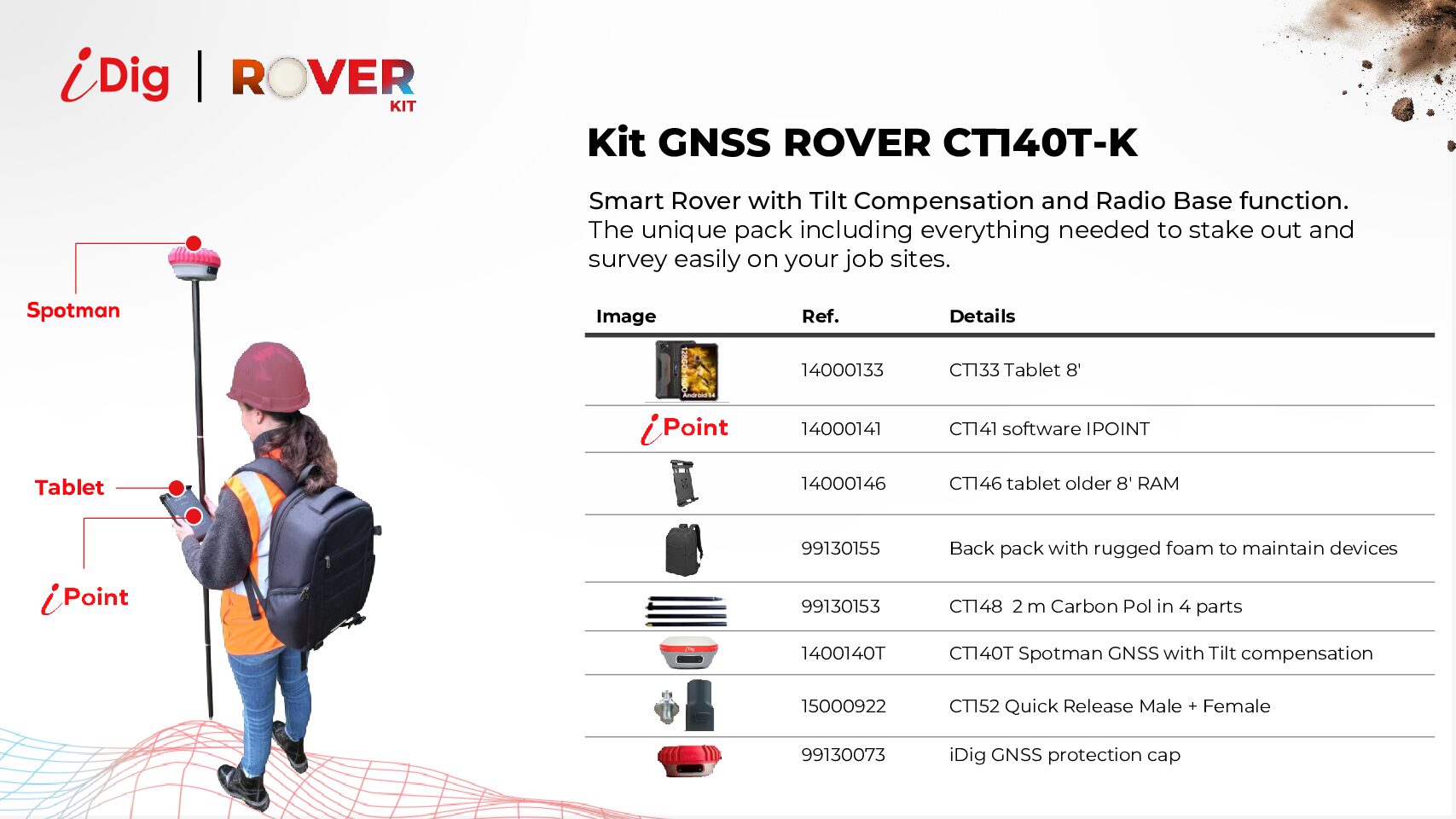

Spotman GNSS Rover Kit Includes
• 1 × CT133 8” Tablet
• 1 × CT141 iPoint Software
• 1 × CT146 8” Tablet
• 1 × Rugged Backpack with Foam Protection
• 1 × CT148 2 m Carbon Pole in 4 Parts
• 1 × CT140T Spotman GNSS with Tilt Compensation
• 1 × CT152 Quick Release Male + Female
• 1 × iDig GNSS Protection Cap

Why Choose the iDig CONNECT 3D System?
The iDig CONNECT 3D System is ideal for contractors who need a scalable and accurate machine guidance solution for complex earthmoving projects. With 3D guidance, GNSS positioning, 2D fallback capability, and a complete Spotman Rover Kit included, it provides the tools needed to improve accuracy, reduce rework, and increase on-site productivity.
