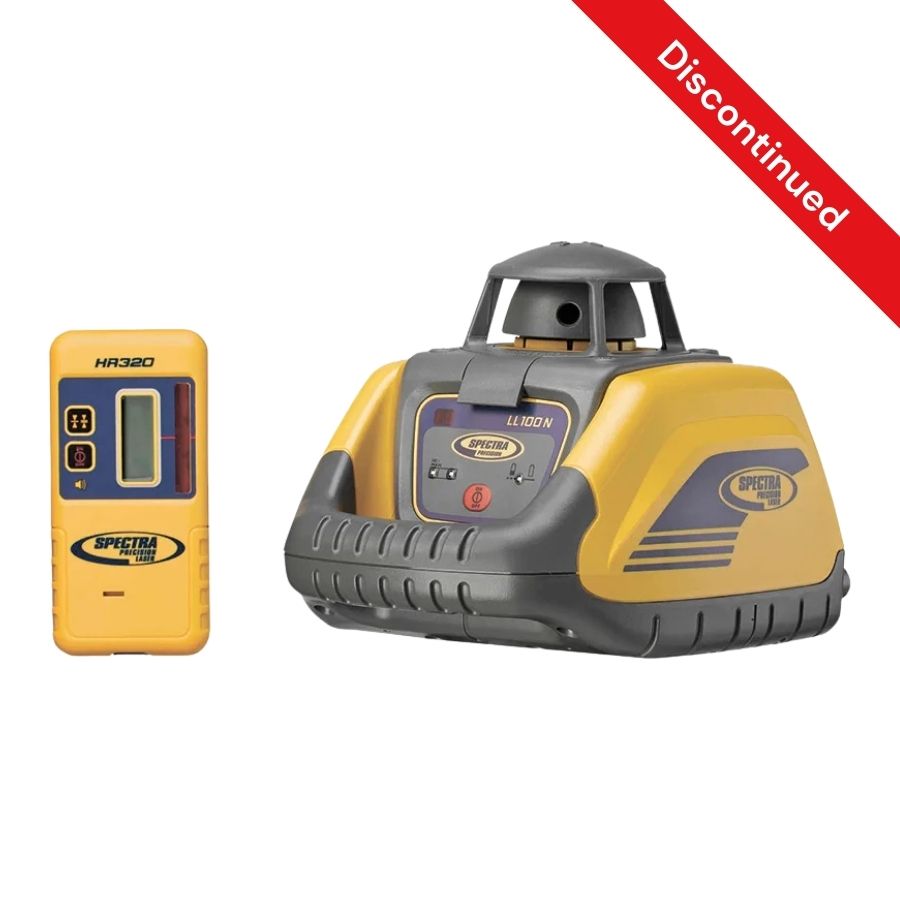

LL100N Laser Level from Spectra Precision

A levelling crew in a case for the small contractor.

The Spectra Precision® LL100N Laser Level is a complete one-man levelling crew in a case. A complete system is contained in a single hard-shelled, portable carrying case – the laser, receiver, clamp, tripod, and grade rod – for easy transportation, storage, and use. A standard case with laser and receiver only is also available. Automatic, self-levelling ensures fast, accurate setups. Easy, one-button operation requires minimal training.

The LL100N Laser Level is capable of handling a wide variety of elevation control applications. Versatility is added with a single-axis manual slope capability for setting out driveways, ramps, and residential drainage lines. It is rugged enough for the toughest jobsite and designed to survive a 1 m drop onto concrete. The LL100 Laser Level is backed by a 2-year instant over the counter exchange warranty.

LL100N Laser Level Features & Benefits

• Automatic self-levelling increases productivity with fast setups and minimal training
• One person elevation control with 1,150 ft (350 m) diameter range increases productivity
• Durable construction can withstand tough jobsite conditions
• Height of Instrument alert stops laser rotation if elevation changes occur to avoid erroneous readings
• HR320 receiver offers 2 accuracies and has grade displays front and rear
• Exclusive 2-year limited warranty with instant “over the counter” exchange policy eliminates downtime

LL100N Laser Specifications

■ Laser Source: 650 nm visible, Class 2
■ Laser Accuracy: ±1/8 in at 100 ft (±3 mm at 30 m)
■ Operating Range: 1,150 ft (350 m) diameter with receiver HR320
■ Self-leveling Range: ±5 degrees
■ Compensation Method: Electronic self-leveling
■ Drop Height on Concrete performance: 3 ft (1 m)
■ Single Axis Manual Slope Mode: Yes
■ Out-of-level warning: Rotor stops, laser shuts off, red out-of-level LED flashes
■ Power source: 2 x “D” Alkaline Batteries
■ Battery life: 80 hours Alkaline
■ Battery Status LED: Flashing red LED
■ Rotation speed: 600 RPM
■ Tripod Mount (Horizontal and Vertical): 5/8” x 11
■ Operating temperature: 23 °F to 113 °F (-5 °C to 45 °C)
■ Storage temperature: -4 °F to 158 °F (-20 °C to 70 °C)
■ Water resistant: Yes, and IP54 sealing
■ Size: 8.5L × 6.7W × 6.0H in (21.6L × 17.1W × 15.2H cm)
■ Weight: 3.3 lbs (1.5 kg)
■ Warranty: 2 Years

HR320 Receiver Specifications

■ Two On-Grade Sensitivities:
Fine 1/16 in (2 mm)
Standard 1/4 in (6 mm)
■ LCD Channels: 5
■ Battery Life: 70 hrs
■ Automatic Shutoff: 30 minutes
■ Dust & Waterproof: Yes IP67
■ Weight: 12 oz (0.34 kg)
■ Warranty: 2 Years
