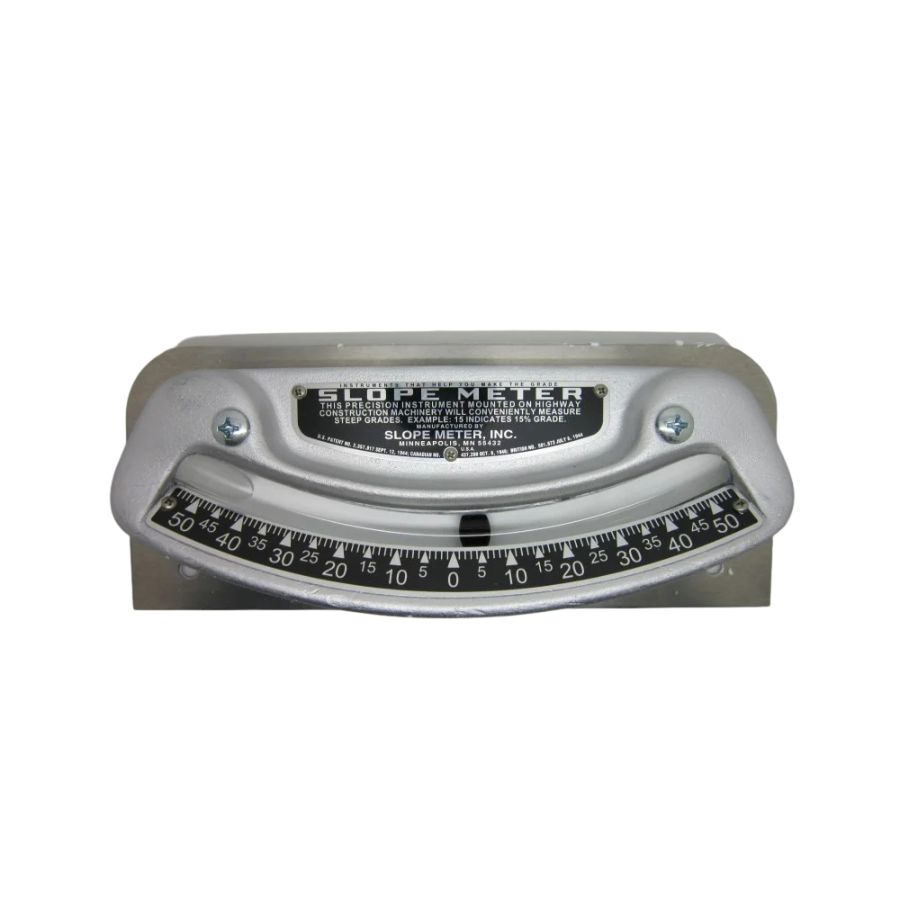

Slopemeter SSM Specifications

The Slopemeter SSM (Steep Slope) Meter combines the features of the “No. 1” and the “No. 2NS”.  The “SSM” is used to determine “percent of grade” and is calibrated to read from 0-50%.  The “SSM” is used in applications where a steeper slope reading is required (as compared to the “No. 2NS”), but the operator or engineer requires a reading in “percent of grade”.  This product works well on bulldozers and similar equipment.

Specifications:

Accuracy/Resolution: 1 degree

Response: 1 second

Size: 3.5 x 8.5 x 1″

Material: Aluminium Casting

Weight: 1.5lbs

Our inclinometer / slopemeter / tiltmeter products are perfect for Medical Equipment, Dozers, Graders & Scrapers, Boom & Bucket Trucks, Utility Trucks & Man Lifts, Material Handlers, Rough Terrain Fork Lifts, Military & Fire Trucks, Tractors, Combines & Mowing Equipment, Snow Removal Equipment, Power Pole Installation Trucks, and Hundreds of other types of machinery and equipment!

All of our Manual Inclinometers designed for extreme environment. Most models can be mounted with with bolts, adhesive strip or our mounting brackets (additional charge).
