Spectra Precision GL412N Single Grade Laser

$3,350.00 + GST

The Spectra GL412 Grade Laser is a rugged, automatic self-levelling laser that performs level, grade and vertical alignment. This construction rotary laser has a 2,000 foot range and includes an HL700 laser receiver that features a digital readout of elevation and increases the GL412’s operating range up to 800M.

Download Brochure Here: GL412N Brochure

Overview for the Spectra Precision GL412N Single Grade Laser

Simplifies level, grade, and vertical alignment setups, the Spectra Precision GL412N Single Grade Laser delivers reliable and accurate performance in various general construction applications. With a working range of up to 800M, it has a grade capability of 10 to +15 percent on a single axis. The GL412N is also self-levelling horizontally and vertically within 5 degrees and has an accuracy of 1.5mm @ 30M. For anchor bolt and form alignment, itself-plumbs in the vertical position and can be mounted on a 5/8-11 tripod thread vertically or horizontally.

The Spectra RC402N full-function remote control comes optional with the GL412N Grade Laser and offers an easy to use menu-driven interface. With a working range of up to 150M, this radio remote gives the ability to make long-range grade changes and automatic alignments. The Spectra GL412N has an out of level alert that shuts off the grade laser if it is knocked out of place to avoid erroneous readings. It also has a selection of sensitivity for accurate results even in high winds or on high vibration job sites.

With an IP66 rating, this laser level is protected against dust and water jets from any angle. It can also withstand drops of up to three feet onto concrete and tripod tip-overs up to five feet. This slope laser uses NiMH batteries and works up to 35 hours of continuous use.

GL412N single Grade Laser Kit components:

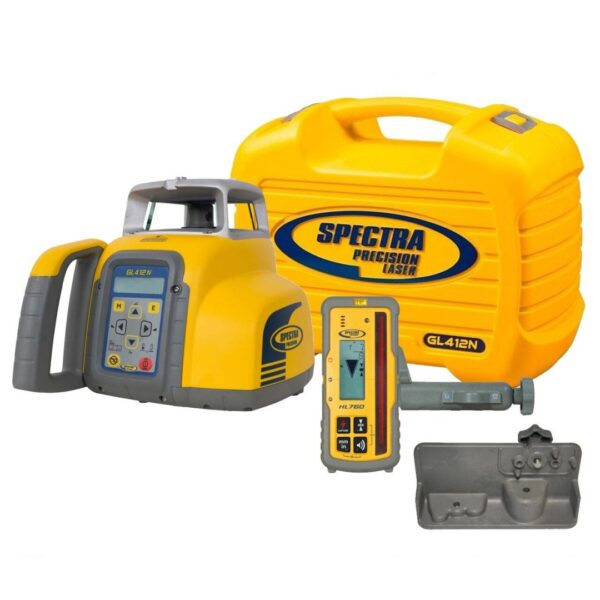

  • GL412N: Laser w/ HL760 Receiver & Clamp, RC402N Remote Control, Vertical Adaptor

Works with the GL412N in automatic Grade Match and PlaneLok, the Spectra HL760 is a highly versatile laser receiver for basic and advanced levelling and aligning applications. It features a digital readout of elevation and an anti-strobe sensor to prevent false reading from job site strobe lights. It also has a unique fingerprint function that detects only the laser beam of the paired laser level.

No Cost 5-Year Warranty offers no repair charge for parts and labor of the laser.
Shock Proof ensures this construction laser withstands three feet drop onto concrete.
Included Radio Remote control is easier to use because it does not have to be aimed at the laser for it to work. This increases the flexibility of the laser for long-range setups while maintaining outstanding accuracy.
Fingerprint function filters out other lasers that strike the receiver and only accepts the laser that it is paired with.
Grade Match enables contractors to measure an unknown grade value automatically between two elevation points.
Dual Axis PlaneLok keeps the laser beam fixed to a receiver in a set position, making it accurate and error free.

Further Information For Spectra Precision GL412 Single Grade Laser:

The Spectra GL412 Grade Laser is a rugged, automatic self-levelling laser that performs level, grade and vertical alignment. This construction rotary laser has a 2,000 foot range and includes an HL700 laser receiver that features a digital readout of elevation and increases the GL412’s operating range up to 800M.

With grade capability of –10 to +15% on a single axis, the GL412 grade laser self-plumbs in the vertical position to allow bolt installation, form, tilt up, and curtain wall plumbing. It is ideal for agricultural and construction applications with its self-levelling accuracy of 1/16th inch per 100 feet. Featuring a sunshade with built-in scope mounting, you can easily install Spectra’s optional sighting scope for quick and accurate axis alignments over longer distances. You can also mount this rotary laser on a 5/8-11 tripod thread vertically or horizontally.

Laser
Color Red
Wavelength 650 nm
Classification Class 2
Direction Horizontal and vertical
Visibility Visible
Range
Interior N/A
Exterior Up to 2,600 feet (800m)
Self Leveling ±5 degrees
Remote N/A
Battery/Power
Battery Life with Rechargeable Battery Pack Up to 35 hours
Battery Life with Alkaline Batteries Up to 50 hours
Power Source NiMH or alkaline batteries
Battery Life Alert Yes
Features
Automatic Shut-Off N/A
Display N/A
Drop Damage Protection Up to 3 feet onto concrete
Bump Sensor (H.I./Out of Position Alert) Yes
Protection Class IP66 dust-proof and powerful water jet resistant
Tripod Adapter (Center Screw Thread) 5/8 x 11
Removable Laser Cage (for exact beam spotting) N/A
Detecting Indicator N/A
Dual Handles N/A
Built-in Bubble Vial N/A
Adjustable Rotating Speed 300, 600 RPM
One-Touch Commands N/A
Wall Mount Bracket N/A
Plumb Point N/A
General
Maximum Power Output <3.4 mW
Weight 6.8 lbs (3.1 kg)
Dimensions N/A
Warranty 5-year
Remote Control Operating Distance Up to 330 feet (100 m)
Extra Technology
Remote Control RC402N
Detector/Receiver HL760 or CR700
Smart Scan® N/A
Smart Slope® N/A
Accuracy
Horizontal ±1/16 inch at 100 feet
Vertical ±1/16 inch at 100 feet
Temperature
Storage -4 to 158 °F (-20 to 70 °C)
Operating -4 to 122 °F (-20 to 50 °C)
Charger
Input N/A
Output N/A
Charging Time N/A
Functions
Slope Match Yes
Grade Operation Automatic
Automatic Leveling Yes
Beam Operating Modes N/A
Scanning Modes N/A
Applications
Checking/Setting Elevations Yes
Transferring Points from Floor to Ceiling Yes
Machine Control of Excavators, Graders, Dozers or Similar Equipment Yes
Installation of Interior Fittings (cabinets, lighting, windows, countertops, etc.) Yes
Short-Range Leveling for Decks, Patios & Swimming Pools Yes
Installation/Leveling Interior Walls Yes
Installation/Leveling Ceiling Grids Yes
Squaring and Layout of Partitions, Walls & Tile Floors Yes
Concrete Forms, Footings and Foundations Yes
Plumb Reference N/A
Checking Elevations of Sub-Base and Sub-Grade Yes
Short-Run Vertical Alignment Yes
Checking Building Square & Area Yes
Estimating Cut & Fill Yes
Matching Existing Slope & Grade Yes
Locating Finished Floor Levels Yes
Grade
Type Single
Percentage –10 to +15%
Accuracy N/A
