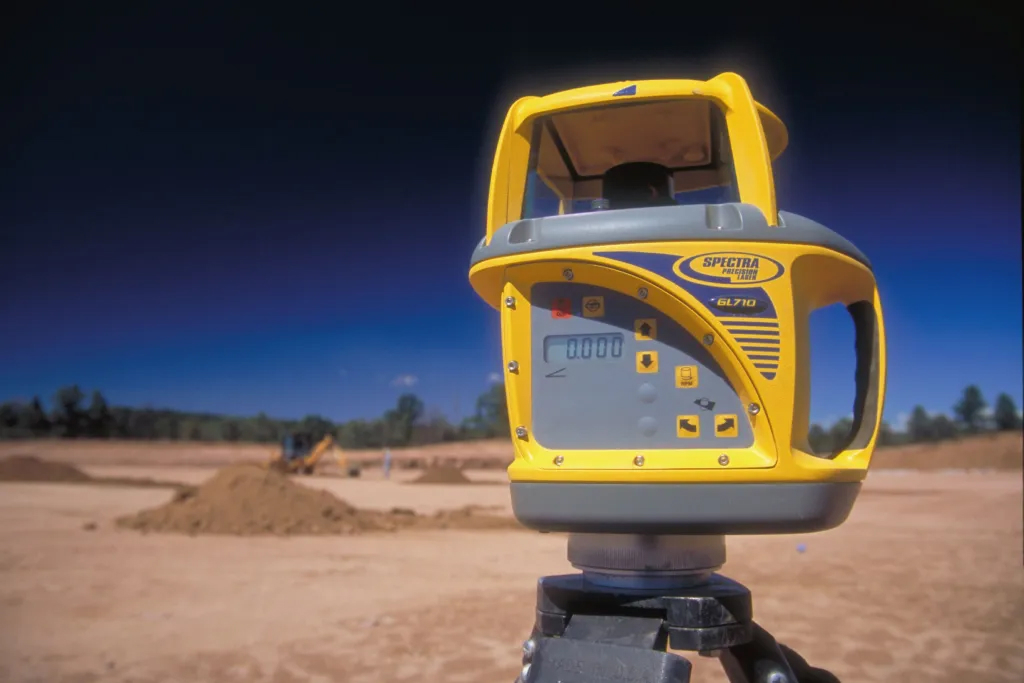

Spectra Precision GL700 Grade Laser

Get the right laser for the right job. Construction-tough Spectra Precision Laser GL700 Series Grade Laser Transmitters provide years of durable, precise performance on your job site.

Download Brochure Here:– GL700 Brochure_

Spectra Precision GL700 Grade Laser: Built for the Job Site

Get the right laser for the right job. Construction-tough Spectra Precision Laser GL700 Series Grade Laser Transmitters provide years of durable, precise performance on your job site.

Choose from economical, single grade to advanced, steep grade laser transmitters. The GL700 series offers the most innovative features – Long Range Remote Control, PlaneLok, and Grade Matching – to help you get to grade faster with increased accuracy.

On site, you’ll find that the advanced features quickly translate into productivity and accuracy. Complex alignments are automatic and easy to perform. The powerful, long-range remote control option mean it only takes one person to accurate set up and operate the grade laser-even grade reverse. And you control all the transmitter functions from inside the cab of a machine.

The Spectra Precision Laser GL Series offers three robust models so you can select the right laser transmitter for the right application. Each laser is easy to use for improved grading operations with increased accuracy and higher profits.

Spectra Precision GL700 Series

Get the right laser for the right job. Construction-tough Spectra Precision Laser GL700 Series Grade Laser Transmitters provide years of durable, precise performance on your site.

The GL700 series offers the most innovative features – Long Range Remote Control, PlaneLok, and Grade Matching – to help you get to grade faster with increased accuracy.

Each unit comes with a laser receiver standard, your choice of power options, and the bet service and support in the industry. With the GL700 series, you can count on faster setups and more productivity … for higher profits.

GL710 Single Grade Laser w/ HL700 Receiver
This easy-to-use, one-person grade laser is economical, yet accurate up to a to 900 meter diameter. With -0.5 to 25% grade range, the GL710 is a great choice for general construction, site preparation, trenching and pipe-laying applications.

GL720 Dual Grade Laser w/ HL700 Receiver
The economical, easy to use GL720 features 10% in the X axis grade range and -0.5 to +25% Y-axis grade range with high accuracy up to 900 meters diameter. The GL720 is ideal for general construction and machine control grade applications.

GL722 Dual Grade Laser w/ CR700 Receiver

The versatile GL722 has all of the features of the GL720 plus all the benefits of the Radio Remote Control functions and Automatic Axis Alignment, Grade Match Mode and PlaneLok features.

Applications

  • General construction
  • Site preparation
  • Trenching
  • Pipe laying
  • Road construction
  • Machine control

GL700 Specifications

Model GL710 GL720 GL722
Operating Range 900 m 900 m 900 m
Laser Class Class 2 Class 2 Class 2
Grade Range X Axis = -0.5% to +25%   X Axis = -10% to +10%   Y Axis = -0.5% to +25% X Axis = -10% to +10%Y Axis = -0.5% to +25%
Servo Deadband Accuracy ˜±1.5 mm/ 30 m ˜±1.5 mm/ 30 m ˜±1.5 mm/ 30 m
Construction Material Cast Aluminium Cast Aluminium Cast Aluminium
Radio Remote Control No No Yes
Auto Axis Alignment No No Yes
Grade Match Mode No No Yes
PlaneLok No No Yes
Dimensions 298 x 254 x 197 mm 298 x 254 x 197 mm 298 x 254 x 197 mm
Weight 8.5 Kg 8.5 Kg 8.5 Kg
Warranty 2 Years 2 Years 2 Years
