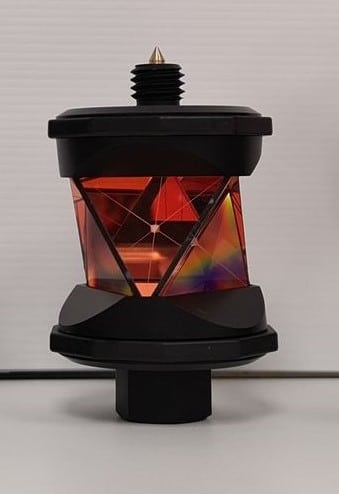

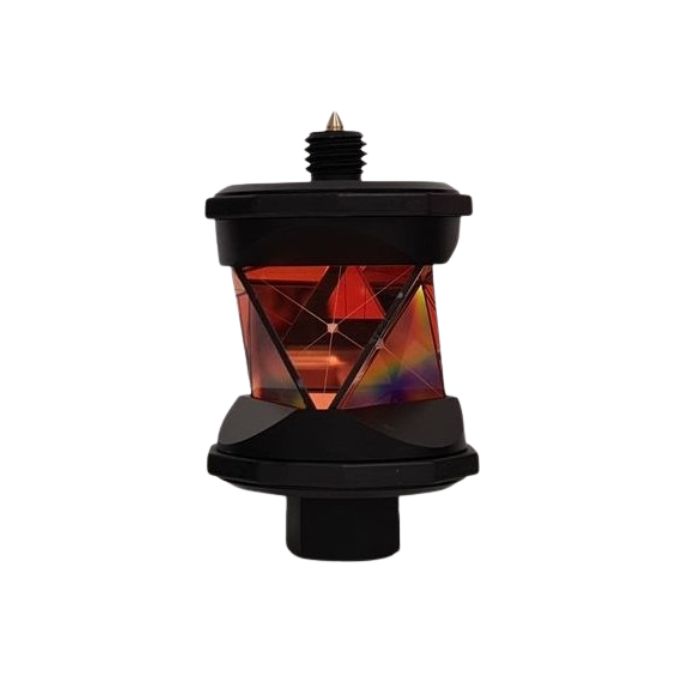

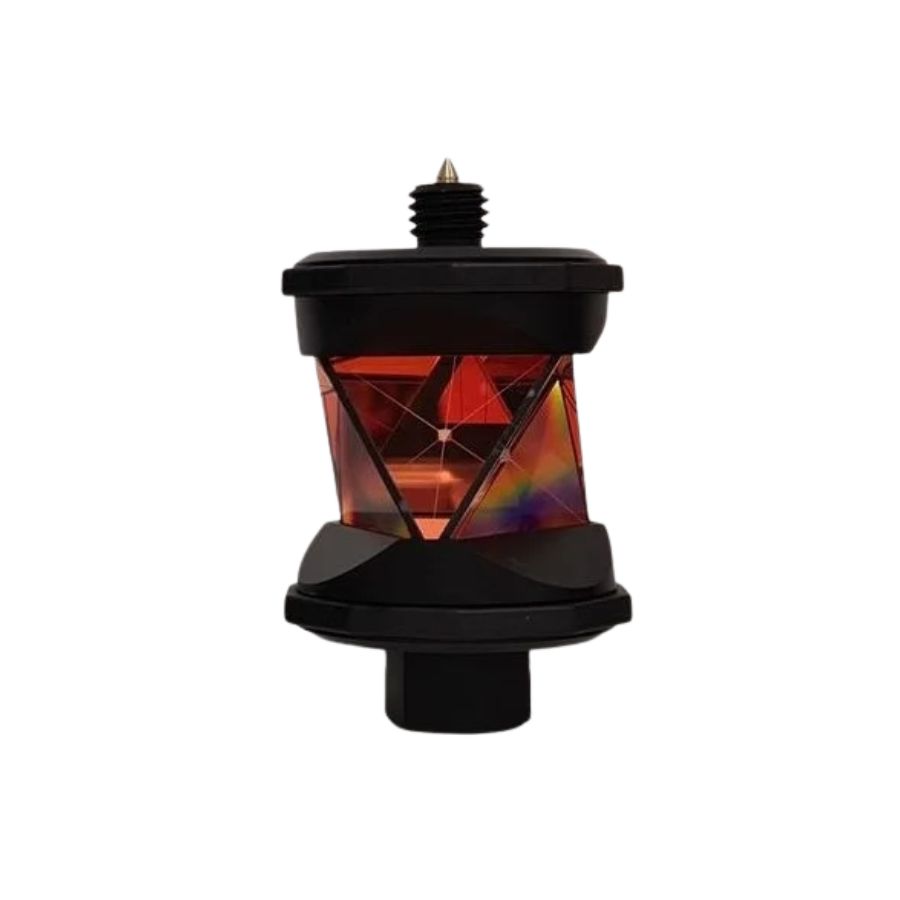

Topcon Style 360 Prism

The Topcon Style 360 Prisms is designed after the Topcon AT92. It is a highly compatible 360 prism which works with all Robotic Total Stations. With its -7mm Offset, it is Precise, Reliable and Affordable.

It has a reinforced centre that works with all Tribrachs, Poles and other Surveying attachments available. With its 5/8 x 11 female mounting threads on top and bottom allow attachments to a quick connect adapter and remote control.

With six precision-machined corner cubes and a rugged plastic housing mounted on solid metalcore, the Topcon Style 360 degrees prism is ideal for surveying tasks at a ≤5-sec accuracy. Its hexagonal points assist in the sighting process for precise initial alignment of the total station. Additional device protection is also provided by its rubber flanges and reflective coating during outdoor use.

The Topcon Style 360 prisms is useful for most robotic work and is a perfect pair for robotic total stations. It comes with a prism protector that doubles as a cleaning cloth and a soft carry case that secures the device when not in use.

Specifications:

• Offset of -7mm
• Accurate at ≤5 sec
• 5/8 x 11 female mounting threads
• Hexagonal precision corner cubes
• Rugged plastic housing
• Solid metalcore
• Rubberized flanges and reflective coating
• Compatible w/ all robotic total stations

Further Specifications

• Diameter of Centre Hole: 5cm
• Thread: 5/8 x11
• Dimensions: 6.9cm x 10.15cm
• Weight: 260 Grams
• Prism Height: 3.80cm
