Vibrometer
Vibrometer
The Vibrometer is a triaxial, battery-powered device engineered to monitor structural vibrations through particle velocity measurements.
Vibrometer

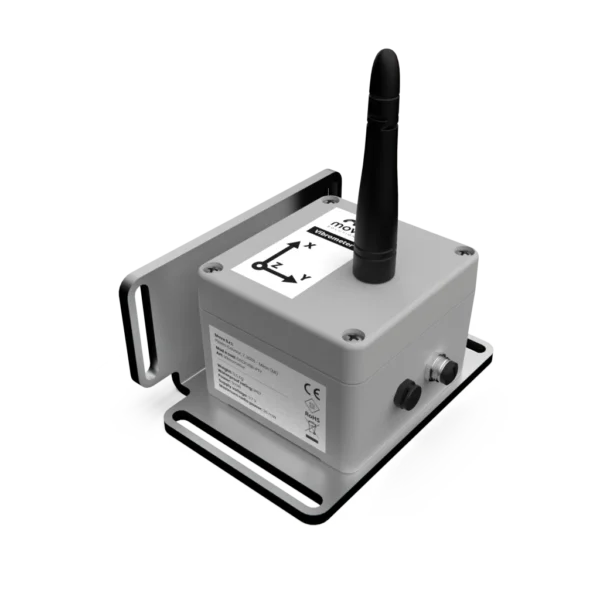

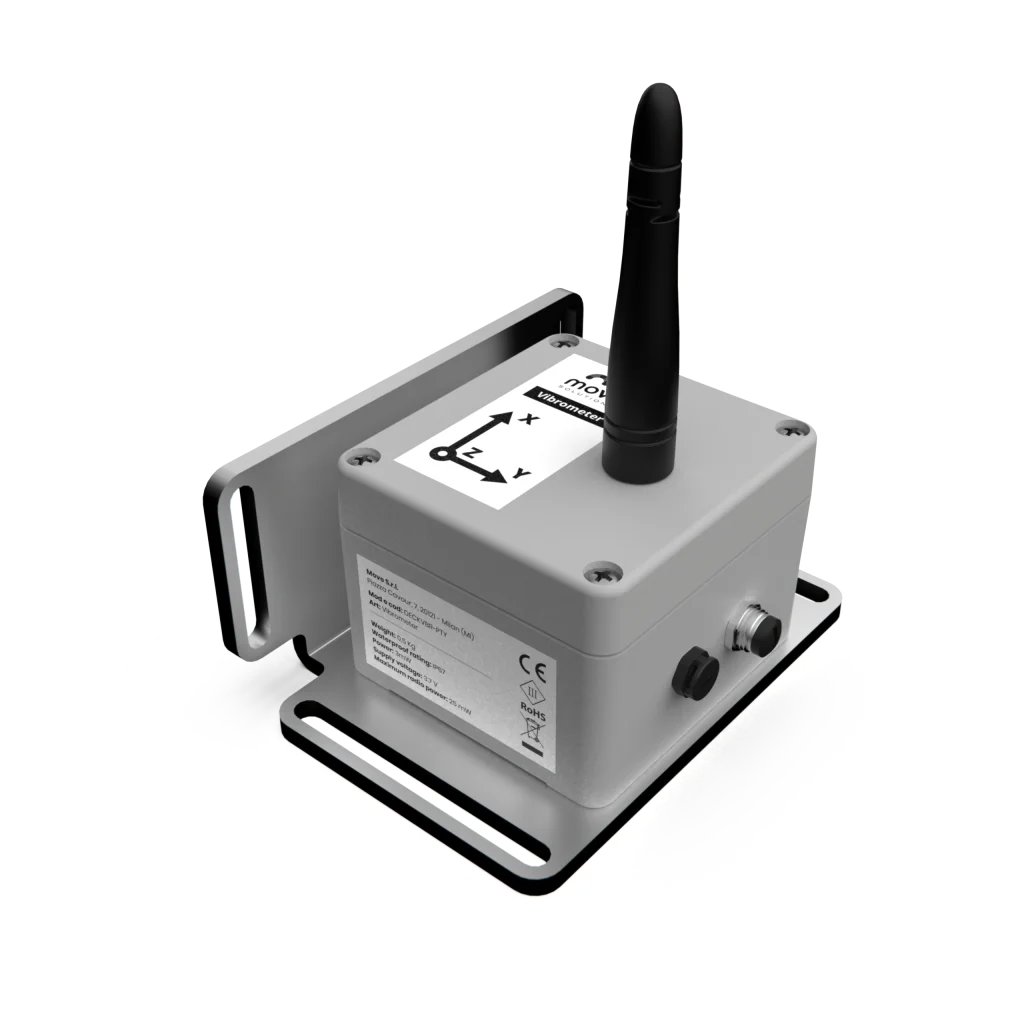

The Vibrometer is a triaxial, battery-powered device engineered to monitor structural vibrations through particle velocity measurements. Based on MEMS technology, it provides information about vibrational amplitude and dominant frequency across three axes. Fully wireless and LoRaWAN-enabled, it operates autonomously and transmits time-synchronized data to the MyMove platform for advanced analysis. Ideal for working with vibration monitoring standards such as DIN 4150 and UNI 9916, the sensor supports long-term deployments in infrastructure and construction environments where vibration must be assessed precisely.
Programmed and event-triggered acquisition
Programmed mode: The sensor divides time into windows according to the selected cadence. Within each window, it
continuously monitors and tracks velocity, and once the window has elapsed, it transmits the data to the server.
Event-triggered mode: captures and stores vibration events exceeding configured threshold. Each acquired event includes, for each axis, the peak velocity value and the detected dominant frequency, as well as the temperature.
Includes:
Vibrometer Sensor
Mounting Plate
Short Antenna
