SKU: I-B-SRVO360HP Category: Tag:

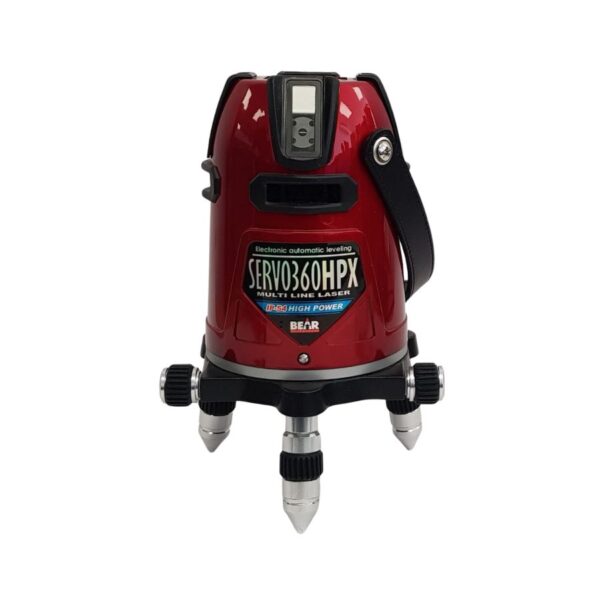

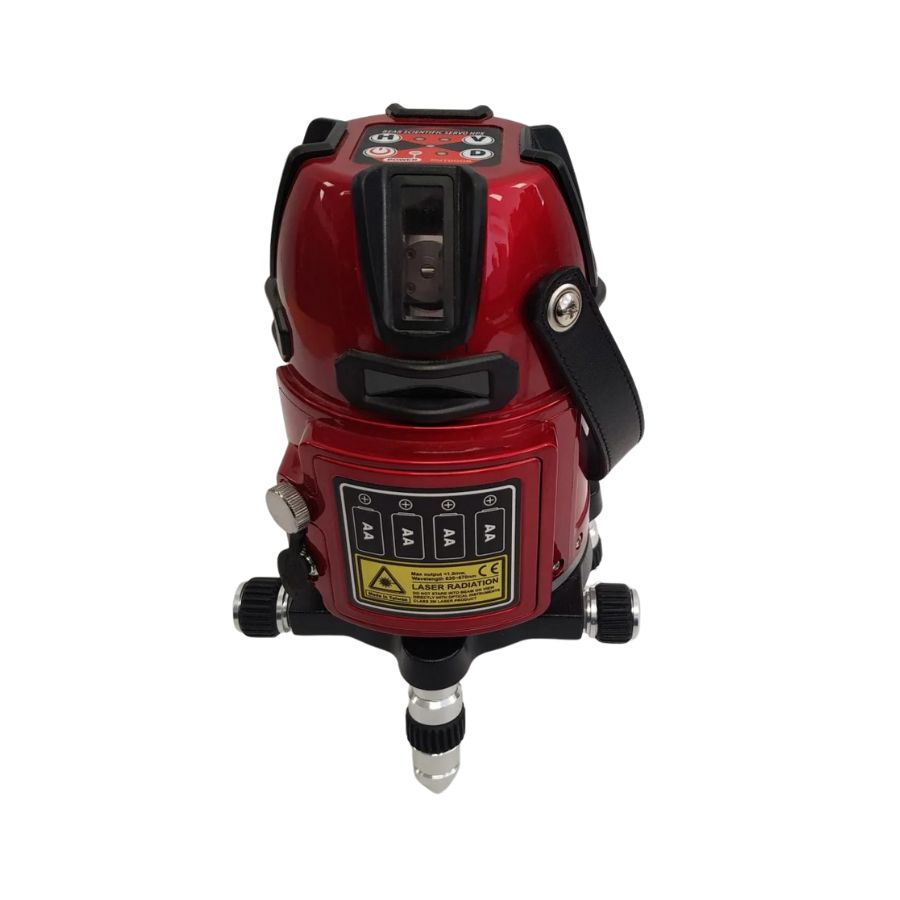

Servo 360 Line Laser Red Beam

$795.00 + GST

The Bear Servo 360 Line Laser Red Beam auto-levelling multi-line laser with slow-motion tangent adjustment screws and outdoor capabilities.

Download Brochure Here: Servo 360HP

6 in stock

Bear Servo 360 Line Laser Red Beam

The Bear Servo 360 Line Laser Red Beam auto-levelling multi-line laser with slow-motion tangent adjustment screws and outdoor capabilities.

Features

  • Indoor/Outdoor servo laser 4 visible vertical lines at 90 degrees to each other
  • 360-degree positioning with slow-motion fine adjustment
  • Horizontal Accuracy is 1mm at 10m
  • The manual slope in both X and Y axes Plumb down point
  • Can be used indoors and outdoors with the receiver
  • Flashing beams to indicate our of level
  • Low battery energy saving feature
  • Includes heavy duty carry case, laser glasses, target, manual, rechargeable batteries and charger
  • Optional receiver available for external use (Bear B-LLR Receiver) with one year warranty



SPECIFICATION

Light Sources 635nm laser diode/floor point 650nm
Anti-dust and water IP-54
Accuracy +1mm/10m
Self-leveling range +5°
Working range(with detector) 360° rotation/360° fine adjustment mechanism
Power supply 4xAA Batteries/rechargeable batteries/AC adaptor
Service time Approx 5-10 hours with all lines ON
Mounting thread 5/8″ x 11 female
Operating temperature -10 ° c-+40°c
Weight 1.9kgs
Size 152x223mm



Indoor/Outdoor servo laser 4 visible vertical lines at 90 degrees to each other

360 degree positioning with slow motion fine adjustment

Horizontal Accuracy is 1mm at 10m

Manual slope in both X and Y axes Plumb down point

Can be used indoors and outdoors with receiver

Flashing beams to indicate our of level

Low battery energy saving feature

Includes heavy duty carry case, laser glasses, target, manual, rechargeable batteries and charger

Optional receiver available for external use (Bear B-LLR Receiver) 1 YEAR WARRANTY
