Tri Axes Tilt Sensor

SKU: I-MOV-DECKTLT-STD Categories: ,

TRIAXIAL TILTMETER

The triaxial Tiltmeter is able to measure the variation
of the static angular inclination of the structure with
respect to the horizontal plane, i.e. perpendicular to
the gravitational axis.

TRIAXIAL TILTMETER

The triaxial Tiltmeter is able to measure the variation
of the static angular inclination of the structure with
respect to the horizontal plane, i.e. perpendicular to
the gravitational axis. By installing an entire system it
is possible to reconstruct the static deflection of the
structure. All Tiltmeters can be perfectly synchronized
with each other, which is perfect for static load tests.
The Tiltmeter is also able to measure temperature.
It is battery powered and has a LoRaWAN wireless
transmission.
The data acquisition methods can be set by the user
through the Web Platform pro- vided by Move SolutionsTM.

OUTPUT TILTMETER
The Tiltmeter outputs angles that describe the variation
in inclination of the body on which the device is
installed. The calculation of these angles is based on
the projections of the gravity vector on the three axes
of the sensor, averaged over an acquisition interval of
one minute. The sensor also acquires the temperature.
By installing an entire system it is possible to reconstruct
the static deflection of the structure during a
load test.
To have a precise and accurate view of the three-dimensional
movement of the structure on which the
Tiltmeter device has been installed, it is necessary to
observe two different angles provided by the device,
“Phi – φ” and “Theta – θ”, in pairs or, alternatively, a third
angle defined as “3D variation angle”.

φ – PHI ANGLE
It represents the angle between the Z axis, represented
on the orientation label, and its projection on the horizontal
plane.
θ – THETA ANGLE
It represents the angle between the Y axis, represented
on the orientation label, and its projection on the horizontal
plane.
Includes:

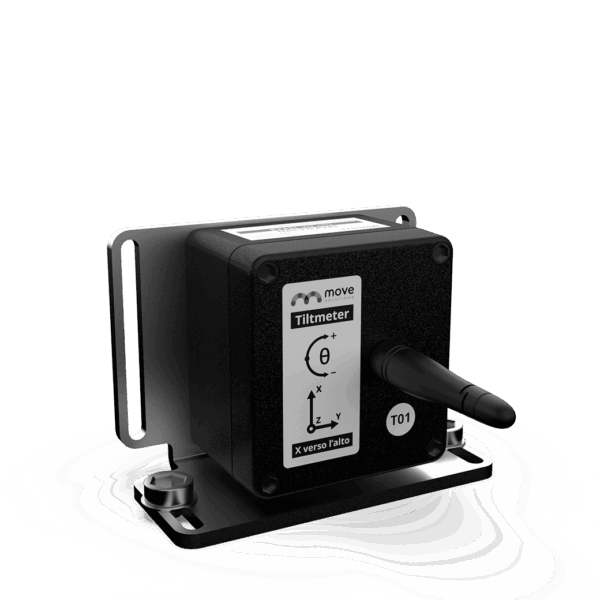

Static Tilt Sensor
Mounting Plate
Short Antenna
