Washington Data Collector with SurvPC

SKU: I-CS-6002.122.001 Categories: ,

Washington Data Collector with SurvPC

Carlson Washington DC Brochure

Washington Data Collector with Carlson SurvPC

The Washington Data Collector with Carlson SurvPC is a field surveying solution designed to support efficient data collection, survey calculations, and construction set-out. Combining a dedicated survey data collector with Carlson SurvPC software, it provides a practical platform for managing field measurements and surveying workflows.

Suitable for land surveying, civil construction, and site layout applications, the Washington Data Collector helps surveyors and construction professionals work with survey information directly in the field.

Rugged Survey Data Collector for GNSS & Total Station Work

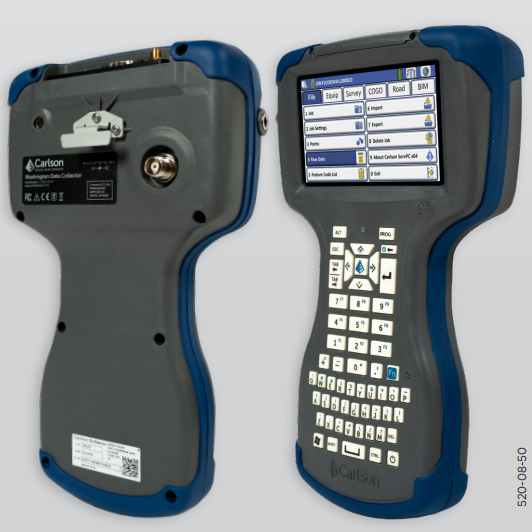

The Carlson Washington Data Collector is a purpose-built field controller combining a physical keyboard, touchscreen display, and Carlson SurvPC surveying software.

Unlike general-purpose tablets, the Washington is designed specifically for survey data collection, with dedicated controls for entering measurements, accessing surveying commands, and operating compatible instruments.

Its Windows-based platform supports GNSS surveying, conventional and robotic total station workflows, construction set-out, and field calculations.


Key Features & Benefits

  • Carlson SurvPC software: Access professional survey data collection, coordinate geometry, and set-out tools.
  • Physical QWERTY keyboard: Includes a separate numeric keypad, backlit keys, and programmable function buttons.
  • 5-inch touchscreen: Provides a compact graphical interface for reviewing survey information.
  • Rugged IP65 construction: Designed to resist dust, water exposure, and everyday site conditions.
  • Hot-swappable batteries: Replace the main battery without shutting down the controller.
  • GNSS and total station connectivity: Supports compatible surveying instruments through supported wireless and wired connections.
  • Windows 10 IoT Enterprise: Runs Carlson's Windows-based field software.
  • Optional integrated RTK GNSS: Available with Carlson's Gama GNSS engine, subject to configuration.

Purpose-Built Keyboard for Field Surveying

The Washington Data Collector features a full QWERTY keyboard with a dedicated numeric keypad, making it practical for entering coordinates, point numbers, descriptions, and measurements.

Backlit keys assist operation in low-light conditions, while programmable function keys provide quicker access to frequently used SurvPC commands.

A dedicated Carlson launch key further simplifies navigation between the software and commonly used field functions.

Carlson SurvPC Surveying Software

Paired with Carlson SurvPC, the Washington Data Collector supports a broad range of surveying applications, including:

  • GNSS and RTK data collection
  • Conventional and robotic total station operation
  • Construction set-out and point staking
  • Coordinate geometry calculations
  • Topographic surveying
  • Road and alignment staking
  • Survey data management and reporting

Available capabilities depend on the installed SurvPC licence and compatible instruments.

Carlson Preferred Solutions

Rugged Design & Field Connectivity

Built for demanding outdoor environments, the Washington features an IP65-rated enclosure, shock-absorbing protection, and a design tested for repeated drops from one metre onto concrete.

Its connectivity options include Bluetooth, Wi-Fi, USB, serial communication, and cellular connectivity, helping field teams work with compatible surveying equipment.

The hot-swappable battery system is designed to minimise interruptions during longer surveying sessions.

Technical Specifications

Specification Details
Brand Carlson
Model Washington Data Collector
Operating system Windows 10 IoT Enterprise
Processor Intel Atom x7-E3950 quad-core
RAM 8 GB
Display 5-inch touchscreen
Keyboard QWERTY and numeric keypad
Environmental rating IP65
Operating temperature -20°C to +45°C
Main batteries Two 49 Wh hot-swappable batteries
Battery runtime Approximately 7 hours per battery, depending on use
Wireless connectivity Bluetooth, Wi-Fi and cellular
Camera 13 MP autofocus
Integrated survey-grade GNSS Optional Gama RTK configuration

Specifications are based on published Carlson Washington product information. Confirm the exact hardware configuration supplied by Cody before publishing.

Ideal Applications

  • Land and topographic surveying
  • GNSS and RTK field data collection
  • Robotic total station control
  • Civil construction set-out
  • Road and infrastructure surveying
  • Site measurements and point staking
  • Survey calculations and field reporting

What's Included

According to Cody's current product listing:

  • Washington Data Collector with SurvPC
  • Protective carrying case
  • Pole clamp
  • Cradle

Additional manufacturer-standard accessories and the exact SurvPC licence configuration should be confirmed before updating the inclusions.

Why Choose the Washington Data Collector with SurvPC?

The Carlson Washington Data Collector combines the practical advantages of a dedicated surveying keyboard with the advanced capabilities of Carlson SurvPC software.

Its rugged construction, flexible instrument connectivity, and field-focused controls make it a suitable choice for surveying professionals who prefer a purpose-built controller over a conventional tablet.
